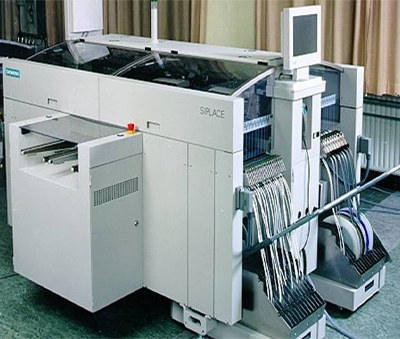

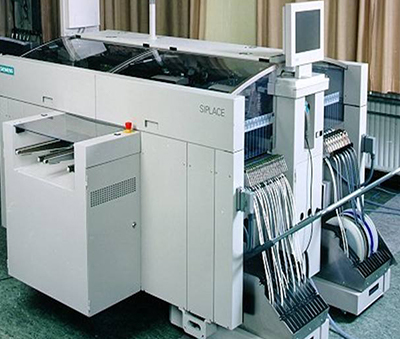

Siemens placement machine HF

Main technical parameters of Siemens placement machine HF: Placement head type: dual placement head and/or 12 nozzle collection placement head and/or 6 nozzle collection placement head Number of cantilevers: 2

Placement head module:

Placement head area 1: Dual placement head or 6 nozzle collection placement head or 12 nozzle collection placement head
Placement head area 2: Dual placement head or 6 nozzle collection placement head or 12 nozzle collection placement head Mounting head
placement rate (theoretical value)
Mounting head configuration placement rate
12C&P/12C&P 28,000 pieces/hour
12C&P/6C&P 23,300 pieces/hour
12C&P/double placement head 17,700 pieces/hour
6C&P/6C&P 18,600 pieces/hour
double placement Head/double placement head 7400 pieces/hour
placement range: 0201 to 85 x 85mm/125x10mm Larger 200x125mm
component height: dual placement head 25mm/6C&P:8.5mm/12C&P:6mmm
Higher placement accuracy (4sigma):
12-nozzle collection and placement head: 60um
6-nozzle collection and placement head: 60um
Double placement head: 35um
Material rack support: 180 pieces, 8mm tape
IC placement head: 40um
Applicable substrate: 50x50mm~450 x 508mm
Power: 6.5KW
compressed air requirements: 5.5~10bar, 350Nl/min, pipe diameter 3/4"
single rail/double rail optional
operating system: Windows / RMOS
