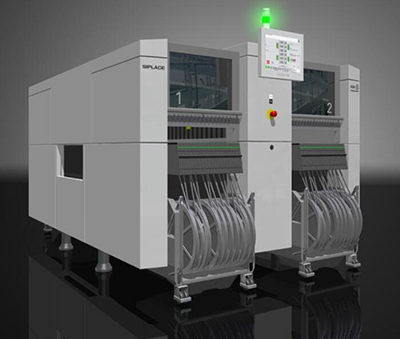

Siemens placement machine SIPLACE X4 S machine parameters:

Number of cantilevers: 4

IPC speed: 105,000cph

SIPLACE Benchmark: 125,000cph

Theoretical speed: 170,500cph

Machine size: 1.9x2.3m

Placement head features: MultiStar

Component range: 01005-50x40mm

Mounting accuracy: ±41μm/3σ(C&P)~±34μm/3σ(P&P)

Angular accuracy: ±0,4°/3σ(C&P)~±0,2°/3σ(P&P)

Maximum component height: 11,5mm

Mounting force: 1,0-10 Newtons

Conveyor belt type: single track, flexible double track

Conveyor mode: asynchronous, synchronous, independent placement mode (X4i S)

PCB format: 50x50mm-850x560mm

PCB thickness: 0,3-4,5mm (other sizes can be customized upon request)

PCB weight: 3kg more

Component supply and material supply

Feeder capacity: 160 8mmX feeder modules

Feeder module type:

SIPLACE component cart, SIPLACE matrix tray feeder (MTC) 4, waffle tray (WPC5/WPC6) 4, JTF-S/JTF-MSIPLACE, X feeder,

Tray plate, vibrating tube, vibrating feeder, customized OEM feeder module

Pickup rate: ≥99,95%

DPM rate: ≤3dpm

Lighting level: Level 6 illumination

ASM performs professional maintenance within the recommended range and intervals to ensure that SIPLACE equipment provides specified performance and accuracy throughout its life cycle.

Our diverse maintenance contracts make the job easier.

1. Only for the main body of the device

2. Use SIPLACE powerful placement head to provide greater 30N placement pressure

3. The extended input and output rails allow the board length to reach 850 mm

4. Only SIPLACEX2S, X3S and X4S are available - not applicable to SIPLACE X4i S

5. Cannot be merged in the same placement area

6. According to the evaluation criteria

Siemens placement machine SIPLACE X4 S product features:

SIPLACEX: Top SMT production line

Many electronics manufacturers believe that wherever the nominal values of the SIPLACEX series can achieve the greater speed and accuracy required

(Applicable to mobile phones, tablets, laptops, LED placement, etc.). Provide customers with faster speeds, lower dpm,

Stable 0201 (metric) processing capabilities, non-stop setting conversion and rapid new product introduction and other functions.

The SIPLACEX series has a modular cantilever function and can provide 2, 3 or 4 cantilevers.

incredible? We look forward to hearing from you - comparing equipment from other manufacturers.

Learn how the SIPLACEX series optimizes special production processes, how to quickly recover investment, and other competitive advantages it has.
