Panasonic placement machine NPM-DX product parameters Parameters
Model name | NPM-DX | |
Substrate size * When selecting long conveyor belt | Double track | L50mm x W50mm ~ L510mm x W300mm |
Monorail | L50mm x W50mm ~ L510mm x W590mm | |
Substrate replacement time * When selecting short conveyor belt | L275 mm or less | 2.1s |
L275 mm over ~ L460 mm below) | 4.8s | |
power supply | Three-phase AC 200, 220, 380, 400, 420, 480V 5.0 kVA | |
power source | Minimum 0.5MPa, 200L/min (ANR) | |
Equipment size | W1665mm x D2570mm x H1444mm | |
weight | 3600kg (main body only, varies depending on optional components) | |
placement head | Lightweight 16-nozzle placement head V3A (per placement head) | Lightweight 8-nozzle placement head (per placement head) | 4 nozzle placement heads (per placement head) | ||||
High-precision mode (OFF) | High-precision mode (ON) | High precision mode (OFF) | High-precision mode (ON) | High precision mode (OFF) | High-precision mode (ON) | ||
Fastest speed | 49,000cph (0.073s / chip) | 35,000cph (0.103s / chip) | 24,000cph (0.150s / chip) | 18,000cph (0.200s / chip) | 8,500cph (0.655s / chip) 8,000cph (0.847s / chip) | 6,500cph (0.655s / chip)
| |
Mounting accuracy (Cpk ≧1) | ±25μm/chip | ±15μm/chip | ±25μm/chip ±25μm/QFP | ±15μm/chip | ±25μm/chip ±20μm/QFP | ±15μm/chip | |
Component size (mm) | 0201 chip/03015 chip 0402 chip ~ L 8.5 × W 8.5 × T 3 / T 6 | 0402 chip ~ L 45 × W 45 or L 100 × W 40 × T 12 | 0603 chip ~ L 120 × W 90 or L 150 × W 25 × T 30 | ||||
Component supply | braid | Braiding width: 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm | Braiding width: 4 ~ 56 / 72 / 88 / 104 mm | ||||
4, 8 mm tape: Max. 136 varieties | |||||||
Rod-shaped | Max.32 varieties (single rod feeder) | ||||||

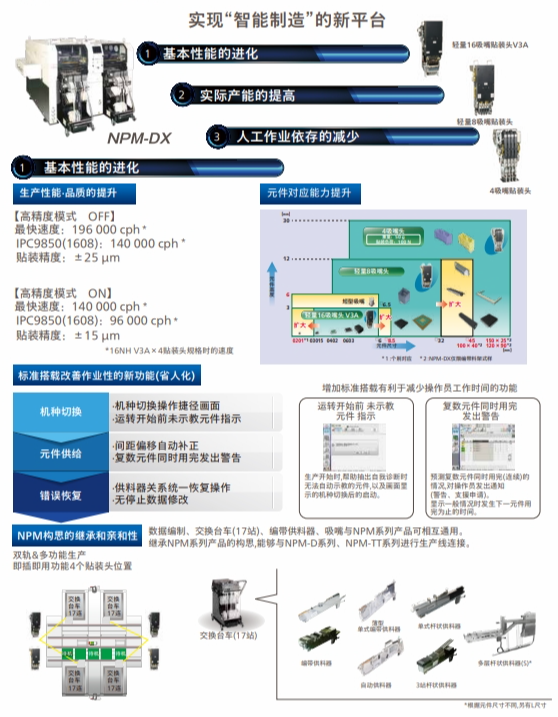

Panasonic’s next-generation assembly manufacturing (X series) concept :
Autonomous functions enable stable operation
Autonomous production line control
APC system, automatic recovery option
Save labor and improve operation rate
Centralized control
Workshop management system, remote operation option
Suppressing unevenness in manual work
Navigation, automation small products
Feeder preparation navigation, component supply navigation, automated small products
