Model name CM602-L
Model NM-EJM8A
Substrate size L 50 mm × W 50 mm ~ L 510 mm × W 460 mm
High-speed placement head 12 nozzles
Mounting speed 100 000 cph (0.036 s/chip)
Mounting accuracy ±40 μm/chip (Cpk ≧1) www.smt11.cn
Component size 0402 chip*5 ~ L 12 mm × W 12 mm × T 6.5 mm
universal placement head LS 8 nozzles
placement speed 75 000 cph (0.048 s/chip)
Mounting accuracy ±40 μm/chip, ±35 μm/QFP ≧ □24 mm, ±50 μm/QFP <□24 mm (Cpk ≧1)
Component size 0402 chip*5～ L 32 mm × W 32 mm × T 8.5 mm *8
General-purpose Ver.5 When optional, 0402 chip *5 ~ L 100 mm × W 50 mm × T 15 mm *6
Multifunctional placement head with 3 nozzles
Mounting speed 20,000 cph (0.18 s/QFP)
Mounting accuracy ±35 μm/QFP (Cpk ≧1)
Component size 0603 chip ~ L 100 mm × W 90 mm × T 25 mm *7
Substrate replacement time m0.9 s (substrate length 240 mm or less When the conditions are better)
Power supply three-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
air pressure source * 1m0.49 MPa, 170 L /min (ANR)
Equipment size mW 2 350 mm × D 2 290 mm *2 × H 1 430 mm *3
Weight *4m3 400 kg

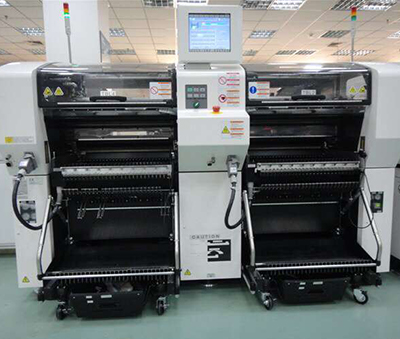

Panasonic SMT CM602, CM602-L high-speed module SMT machine  features:
1. The XY axis adopts the latest The linear motor provides the most powerful power for CM602.
2. The moving arm beam and head adopt new designs and materials, which not only reduces the weight, but also greatly strengthens the rigidity, making it more stable during movement
. 3. The movement of the XY axis adopts a high-speed and low-vibration design.
4. The linear motor adopts a new cooling design scheme, which can cool down more quickly and effectively under high-speed motion than other equipment using linear motors, ensuring the operating efficiency of the motor and extending its lifespan.
5 or 7 types of material racks can correspond to all tape packaging components from 8mm to 104mm. It is currently the most versatile equipment in the industry with the widest applicability. And a new 8mm single material frame has been added according to customer needs.
6. The exchange of material racks during operation, the design of the overall exchange trolley, the design of the overall exchange support pin, etc. can greatly improve the equipment operation efficiency and machine model switching time.
7. While improving production efficiency, the mature design of CM402 is adopted in terms of software, hardware and operation, ensuring interchangeability with CM402.
