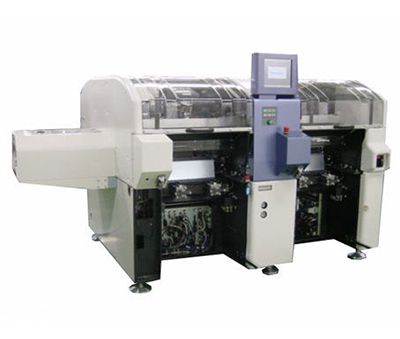

Panasonic CM212M placement machine technical parameters:
Panasonic CM212 placement speed: 0.065/60000

Weight: 2500KG

PCB size: 400*250

SMT material station: 160

SMT accuracy: plus or minus 0.05mm

Feeder specifications: 8-32mm

Voltage: 200V

Applicable components: 0201-24QFP (0.5 or above)

Panasonic CM212M placement machine with high productivity

Achieved a higher CPH of 54,000 (0.067s/pcs) 　

Actual efficiency 38,000 CPH (0.098s/pcs) Substrate transfer time...3.6 s (～substrate

Panasonic CM212M placement machine supports high-density placement

0603 Narrow pitch placement and high precision placement

High-speed placement head…………0.05mm (Cpk≧1.0)

Multifunctional placement head...0.035mm (Cpk≧1.0) Can be compatible with APC system

Panasonic CM212M placement machine has better model switching and high availability

MJS (universal rack fixation) rack exchange cart (Op) PCB fixed support device unified exchange nozzle exchanger (for high-speed placement heads)

Panasonic CM212M placement machine has a wider range of parts to cope with stress, modular exchange function

0603～□24㎜ t6.5mm/high-speed placement head 0603～100x90㎜ t21mm/multi-function placement head Placement head replacement = high-speed placement head? Multi-function placement head is equipped with a direct pallet feeder to improve parts response capabilities Intelligent material rack

Motor drive method, cylinder drive method
