Product model: fuji/Fuji multi-function placement machine XP243E

Brand: FUJI/Fuji

Origin: Japan/Japan

fuji/Fuji multifunctional placement machine XP243E parameter details:

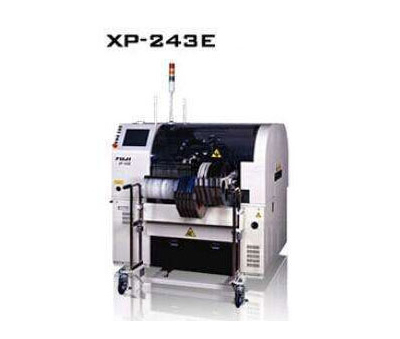

fuji/Fuji multifunctional placement machine XP-243E

1. SMD range: 0603-45x150mm, parts with height below 25.4mm

2. SMT speed: 0.43s/chipIC, 0.56s/QFP IC

3. SMT accuracy: ±0.04mm/chipIC, 0.03s/QFP IC

4. Applicable substrate: maximum 457x356mm, minimum 50x50mm, thickness 0.3-4mm

5. Material rack support: front and rear feeding, 40 stations on the front side, two options on the rear side: 10 types of 10 layers and 20 types of 10 layers

6. Machine size: L1500mm, W1500mm, H1537mm (excluding signal tower)

7. Machine weight: 2000KG

8. Language support: Chinese, English, Japanese

9. Program editing: supports both online programming and offline programming

fuji/Fuji multi-function placement machine XP-142E

PCB size: X 80 mm /Y50 mm ---X508mm/Y457mm

Range of components that can be mounted: 0201-5*4mm

Number of material stations: 100

Theoretical patch speed: 0.168sec/piece 21428 points per hour

Mounting accuracy: ±0.066mm

Dimensions and weight: W1500*D1300*H1408, weight 1800Kg

Power supply and air source: 3-phase, 200V, 4KVA, air source: 80NL/min, 0.5MPa

Material rack supports: front and rear material supply, 100 stations in total, trolley material changing method.

Language support: Chinese, English, Japanese.

Program editing: supports both online programming and offline programming.
