X-RAY ray tester

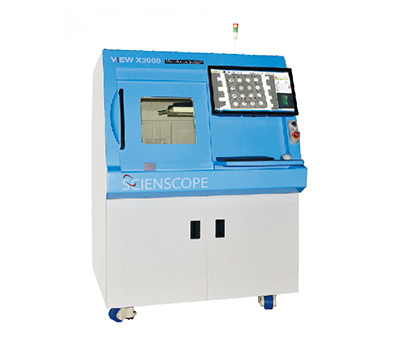

The View In addition, the powerful software measurement function greatly improves inspection efficiency. In addition, CNC functions can make the inspection process easier and faster. The View X2000 x-ray tester is one of the most practical x-ray testers on the market.

Shansi x-ray X-ray detector
automatically determines BGA short circuit due to poor welding
 : Preset NG picture, automatically compare and identify
 BGA cold welding through software: Preset NG picture, automatically compare and identify
 BGA holes through software: Preset NG picture, through software The software automatically compares and identifies
 BGA false welding: preset NG pictures, and the software automatically compares and identifies

 the learning function
test mode to store the test parameters of different products, which can be stored in categories and recalled at any time.
Motion mode programming (CNC) can set the inspection route or sequence of one or more products.
 PROFILE: Assists in judging BGA soldering
MAPPING: The circuit board picture is displayed on the screen in real time. By clicking anywhere on the circuit board picture, motion control can be achieved.

Measurement function
 bubble measurement: optional manual/automatic measurement, single ball/multi-ball measurement mode. During automatic measurement, the bubble area standard can be preset.
 Area measurement: preset area size standard, NG product prompt function.
 Dimensional measurement: motion control such as distance, golden line arc, slope, angle, etc.
 Automatic reset: Turn on the automatic zero function of the cargo platform and reset the system.

 Automatic positioning: Import pre-made programs to realize fast automatic positioning function, which facilitates large-volume inspection and product series management of enterprises.

Field of view switching: The interface can be quickly switched between 2-inch and 4-inch fields of view to meet the two inspection needs of large field of view browsing and local detail observation, saving inspection time and improving inspection efficiency.
 Operation mode: CNC automatic control, manual control of keyboard and mouse are available in 3 modes.

 Safety door lock: The software automatically identifies the switch status of the door lock to ensure safe operation.

Shenzhen Topco Electronic Technology Co., Ltd. specializes in providing the following SMT equipment to electronic manufacturers:

MPM printing press , Koh Young  SPI

Panasonic placement machine , Fuji placement machine , Siemens placement machine

Meilu AOI , Vitronics Soltec reflow soldering

The entire SMT production line equipment, as well as spare parts, services and solutions.
