characteristic:

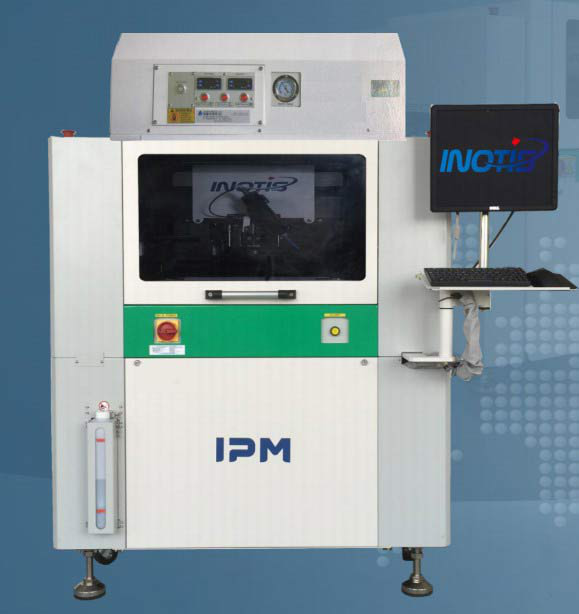

INOTIS IPM-X5 high-end fully automatic solder paste printing machine , with high precision, high efficiency and high cost performance. Three-track system, PCB transfer speed is fast, improving production efficiency.

Intelligent real-time pressure control system: real-time pressure control during the printing process, complying with ISO product requirements.

Intelligent wiping system: 4 cleaning methods (dry, wet, vacuum, wind blowing) for high-efficiency cleaning, programmable cleaning combinations

Advanced plywood system: A multi-functional plywood system that can clamp PCBs with a thickness of 0.3mm and automatically corrects it.

INOTIS IPM-X5 printing press parameters:

Minimum PCB/substrate: 50*50mm

Greater accuracy: 400*300mm

Accuracy correction: ±0.0125mm

Scraper speed: 5-100mm/sec＜Progranmmable

Printing cycle/PCB Moving/Basic printing cycle: 7S

PCB replacement time: Less Than 5Mins
