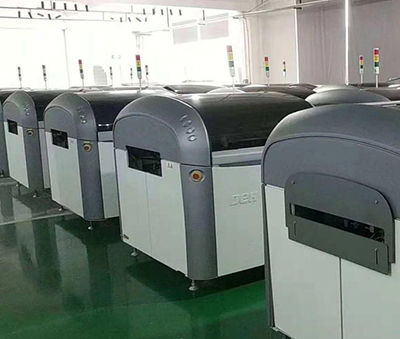

Fully automatic printing machine 03iX

characteristic:

DEK's fully automatic screen printing machine has an advanced top-view/down-view vision system, independently controlled and adjusted lighting and a high-speed moving lens. Position the PCB printed circuit board and the stencil carefully, and apply solder paste or red glue on the printed circuit board according to the openings of the stencil.

DEK 03iX printing press parameters:

Device alignment accuracy > 2Cpk @ +/- 12.5 microns, 6 sigma

Process alignment accuracy > 2Cpk @ +/- 25 micron, 6 sigma

Core print cycle time: 12 seconds (up to 11 seconds with HTC)

Scraper pressure mechanical system: software control, motor drive

ISCANTM Device Control: Operational control using the CAN BUS network

Operating interface: Color tablet touch screen, keyboard and trackball, DEK InstinctivTM V9 user interface

Screen positioning: manual loading using screen frame depth adjuster

Larger substrate handling dimensions: 510 mm (X) x 508.5 mm (Y)

Minimum substrate handling size: 50 mm (X) x 40.5 mm (Y)

Substrate thickness: 0.2mm to 6mm

Substrate weight: 1 kg

Track Type: Integral transmission system using 3mm round belts

Visual Kei: Cognex

Camera Lighting: Software-Controlled Programmable LED Lighting

Shipping Information: Specifications

Approximate weight: 790kg packed (depending on optional options purchased)

Bare metal: 630 kg (depending on optional options purchased)

Approximate dimensions: 2060mm x1500mm x1550mm
